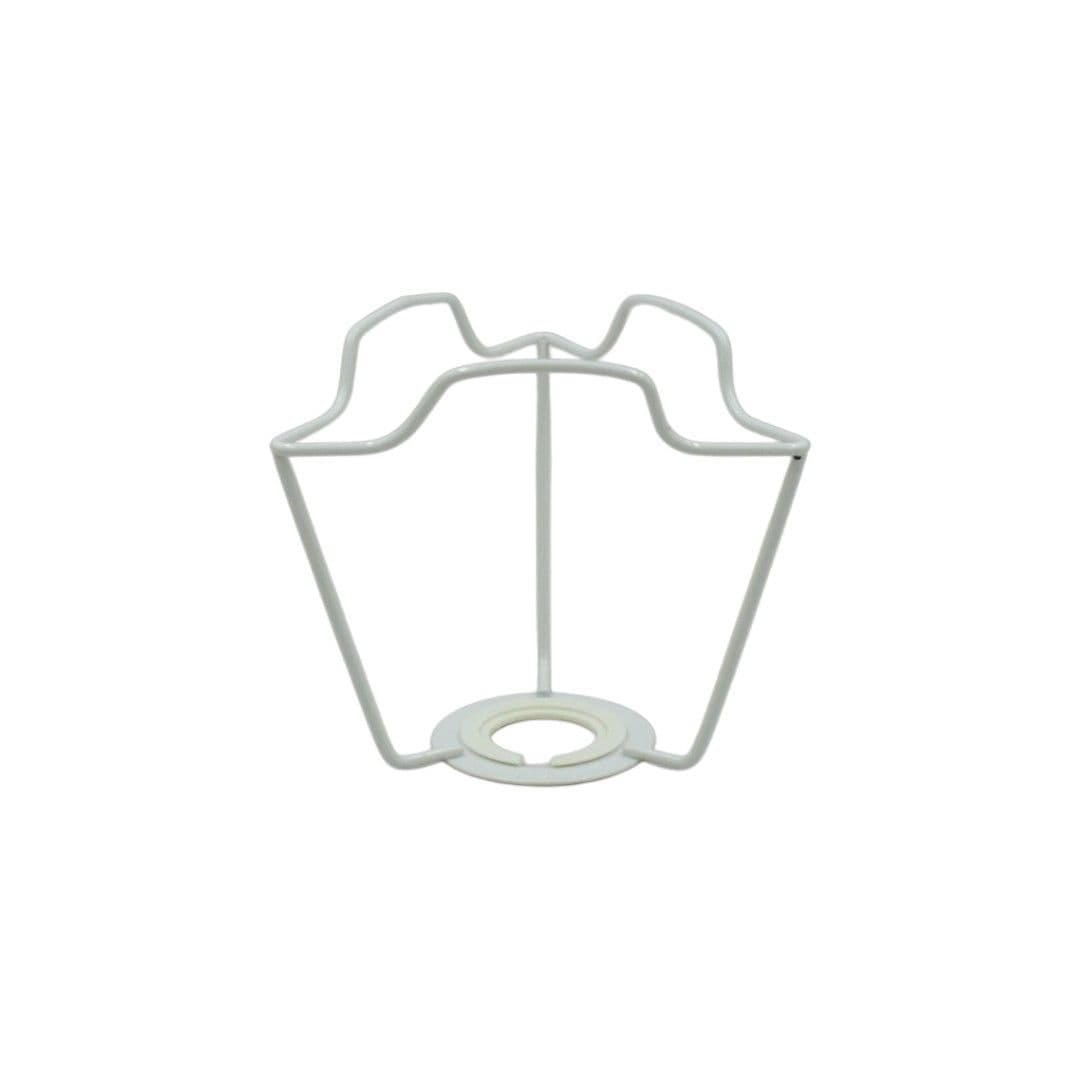

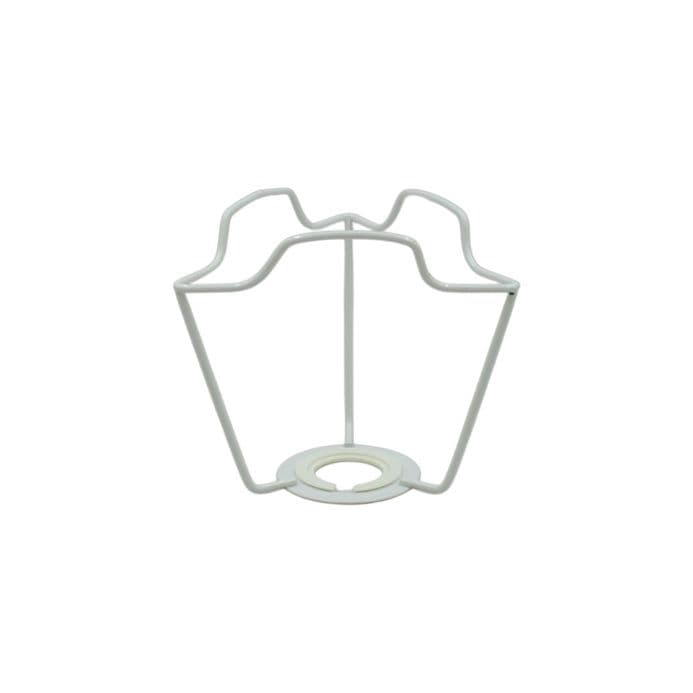

4" Shade Carrier

This Shade Carrier is 4" High (10 cm) and will fit onto any British (BC) or (E27) European lamp holder fittings.

What is a shade carrier?
It's used to connect lampshades manufactured with Duplex rings to lamp holders and control the height between.

How to use
This shade carrier will fit into a lampshade that is equipped with a standard Duplex ring
The internal diameter of a standard duplex ring measures 107mm. One end fits onto the lamp holder, and the other end is cradled to hold the duplex ring of the Lampshade. The lampshade is then placed on top.

What type of lamp holders will this Shade Carrier fit?
The frame is manufactured to fit European lamp holders, and a Converter/Reducer Adaptor plug is supplied to reduce the aperture
so it can fit UK lamp holders.



Lampholder Types
B22 Bayonet Cap  Lampholders (UK) -  Adaptor Fitted
E14 Edison Screw Lampholders  (EU)    Adaptor Fitted
E27 Edison Screw Lampholders  (EU)    Adaptor Removed
E26 Edison Screw Lampholders  (US)    Adaptor Removed

What's included?
1 x 4" Inch   (10cm)   High Shade Carrier
1 x E27/E26 to B22/E14 Lampshade Reducer / Converter Adapter

Specifications
4mm top quality heavy gauge wire
Epoxy coated /painted white (prevents rust)

Notes
The product will have a tiny uncoated spot where the ring has been hooked for spraying; this is not a fault.

How to Order
Use the Add-to-cart button at the top of this page.

Video
We have made a short video to show how the system works.
