12" Inch Circular Lampshade Frame / Ringset - UNO fitting

Qty From Qty To Unit Price (Exc. Vat)
1 £3.73
2 11 £3.70
12 99 £2.75
100 ∞ £2.47
PayPal Checkout
You will earn 4 points with this purchase

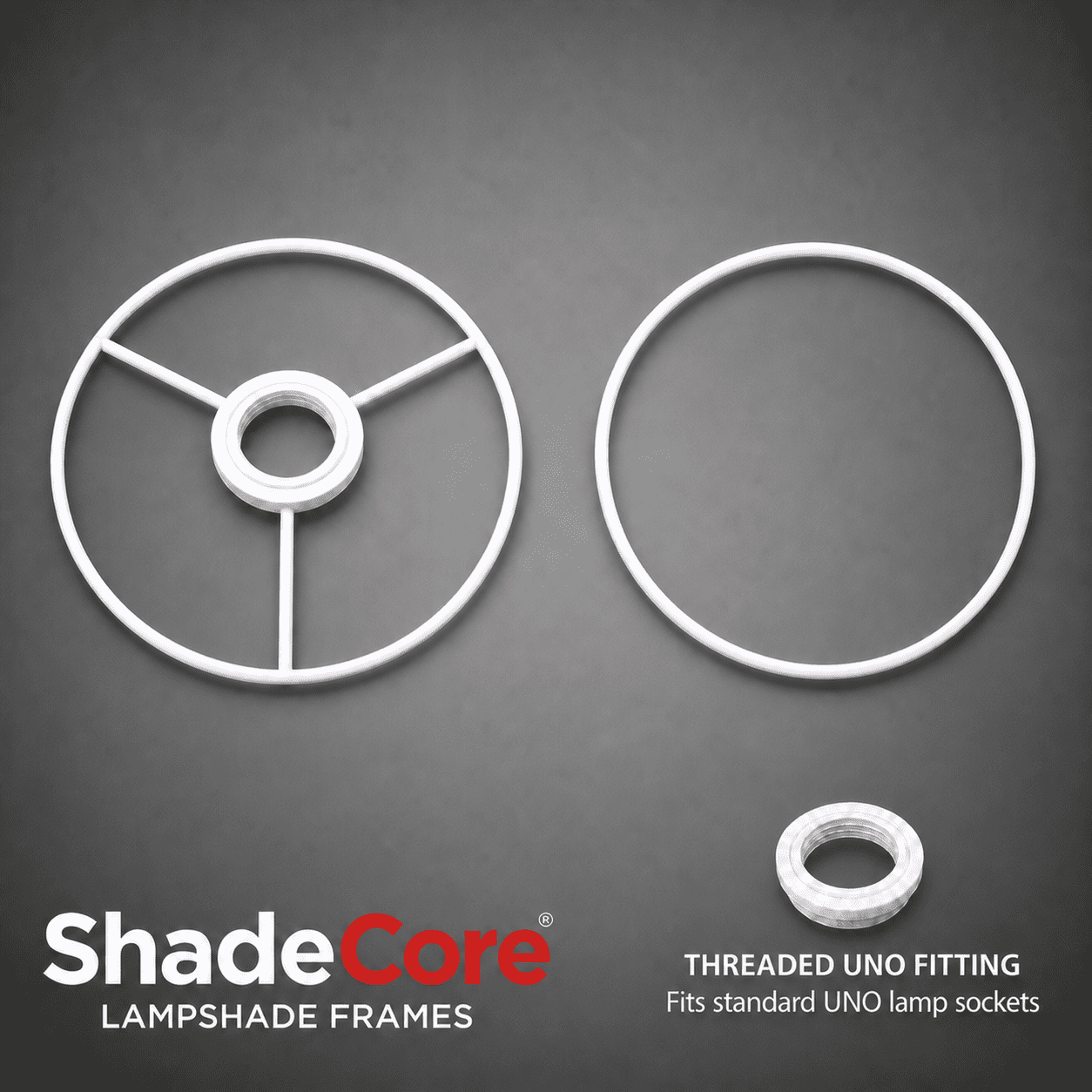

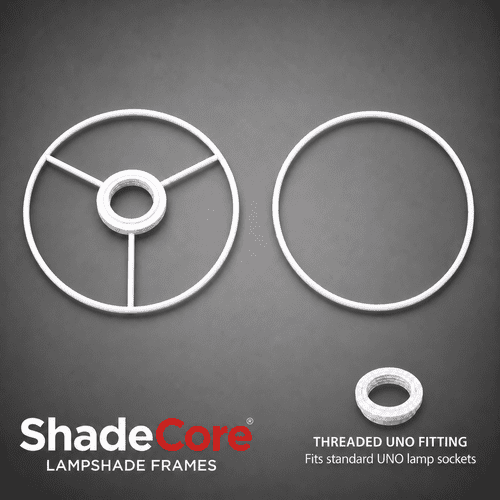

These frames are used to make circular hardbacked (rigid) Drum, Cylindrical, Empire or Conical style lampshades. They can fit with all American, European and UK Lampholders or Pendant Fittings. Supplied as a 2 part set comprising of one plain ring and one fitter UNO (utility) ring.



What type of lamp fittings will this frame fit?
This set can fit all American, European, and International lampholders.
The Fitter, UNO (utility) ring will fit E26 and E27 lamp holder and pendant fittings.

Converter/Reducer Adaptor
The frame can also fit E14 and B22 Bayonet Cap Lampholders by installing an adaptor to reduce the aperture of the fitter (purchased separately).
If you wanted to use the frame with a Harp & Finial fittings, then you can use converting washers with the adaptor (purchased separately) to reduce the aperture further.

For more details about the Converter / Adaptor system click here

Harp & Finial Fittings
If you wanted to use the frame with a Harp & Finial fittings, used mainly in the USA, then you can use converting washers with our adaptor (purchased separately) to reduce the aperture further. For more details about the Converter / Adaptor system, click here.



What's included?

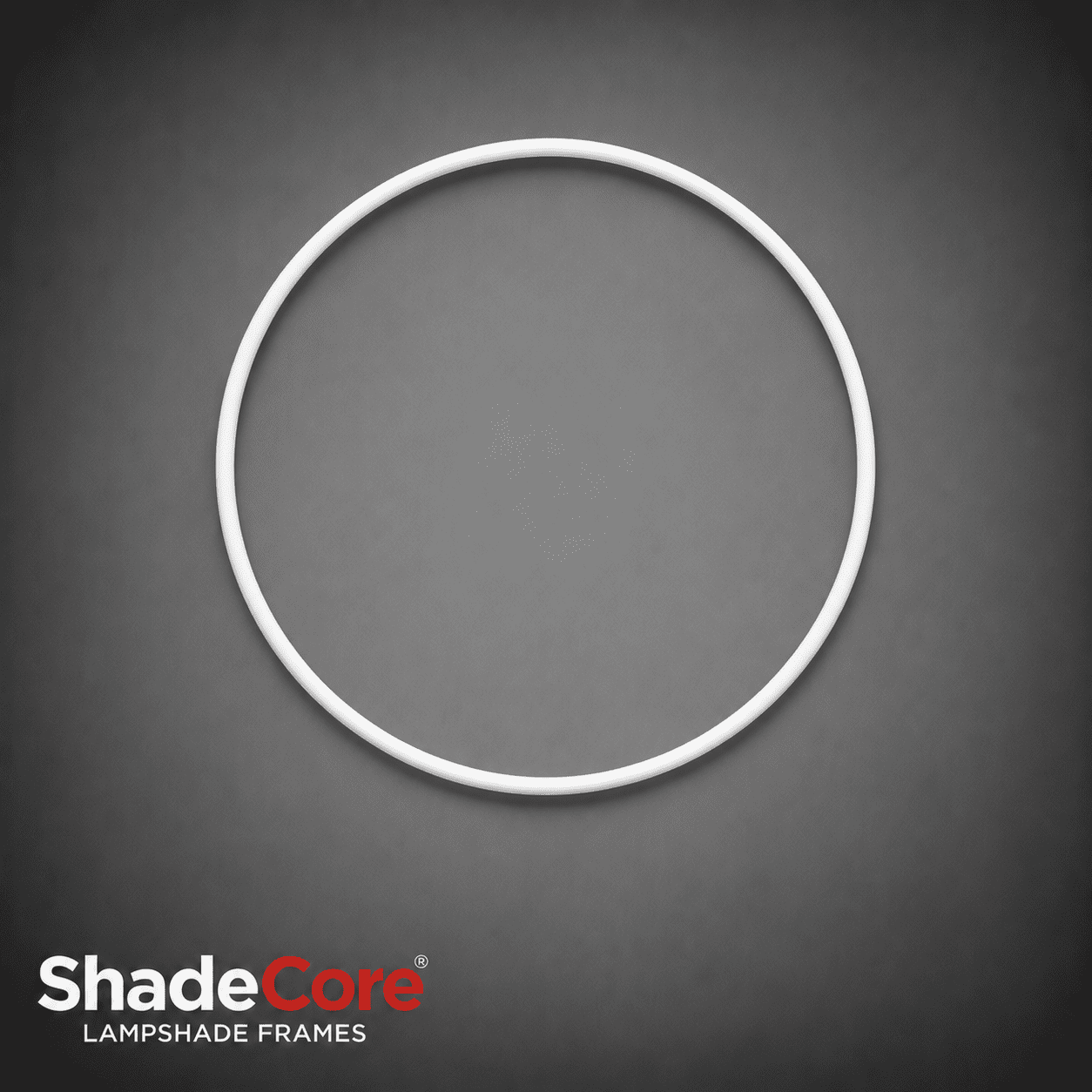

1 x 12" inch Diameter Lampshade Frame
1 x 12" inch Diameter Fitter (Utility) UNO Frame


Specifications
Frames manufactured from 9/64ths or 3.5mm Gauge Mild Steel Wire
Fitter UNO Frame has an aperture of  1 37/64 inches or 40mm
Epoxy coated / Painted White (prevents oxidising)


How much material do you need / panel size
The length of your material needs to be 37 3/4" inches  (960mm) wide to go around the circumference of the frame, which includes 5/8ths (15mm) allowance for the overlap/seam.

we supply lampshade frames and lamp shade panels and everything you need to make lamps
       37 7/5" inches    (960mm) wide

Notes
Rings will have a tiny uncoated spot where the ring has been hooked for spraying, and this is not a fault

Options



Do you need a panel for your Frame?
Try our FREE Lampshade Designer Software to design a template for your frame.
Our software gives you an instant on-screen preview of your design, and you have options to save the pattern as a PDF for printing or cutting.  For more information, or to try now click here.

Converter/Reducer Fittings
See related items below to purchase Converter/Reducer fittings for the frame.
