100cm Circular Lampshade HUGE Metre Ring Set

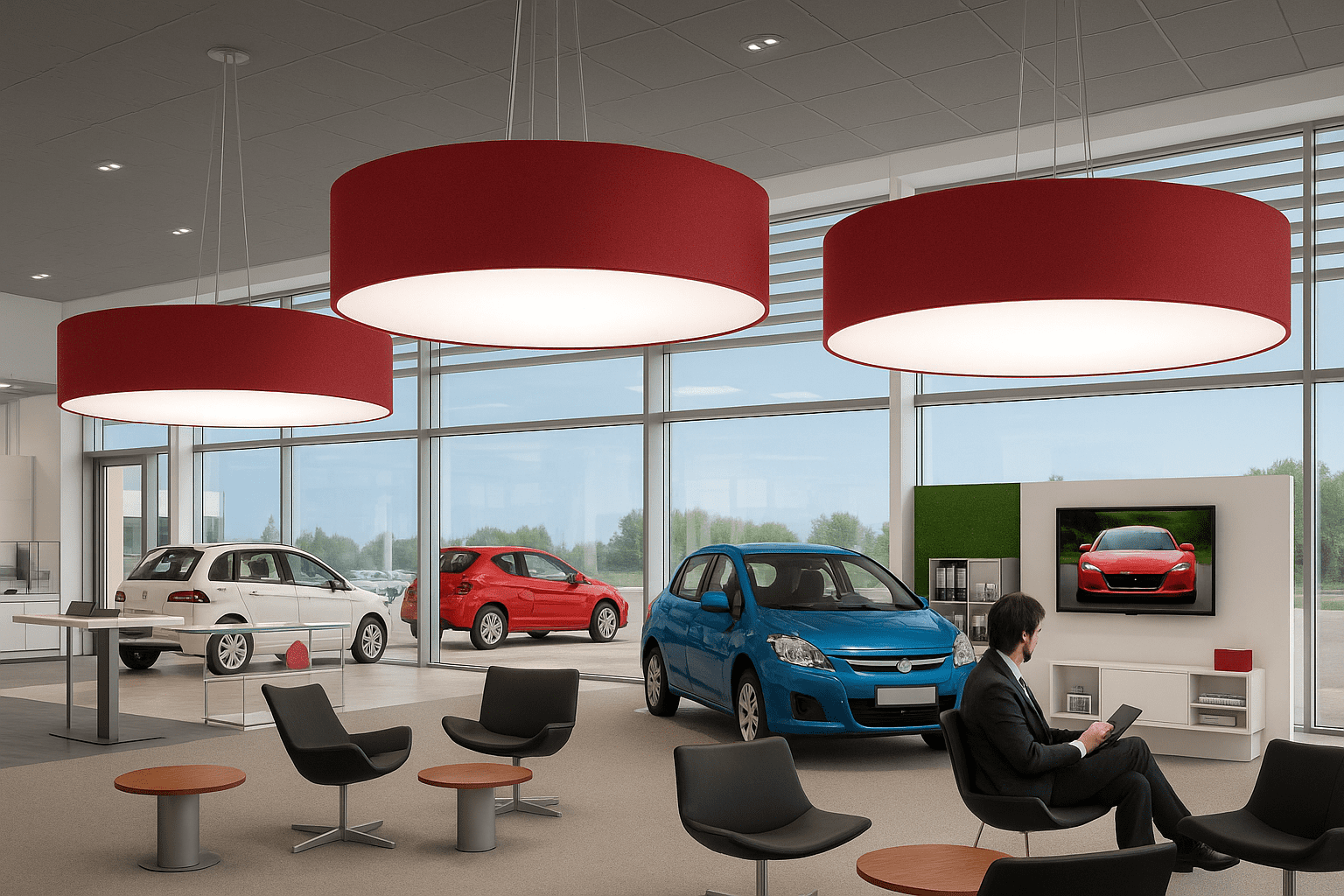

These massive lampshade ring sets are used to manufacture oversized lampshades for industrial and commercial projects, hotels, exhibitions, point of sale or they can be used for specialist home lighting projects.

The frame will connect with UK and European Lampholders or Pendant Fittings and it will take three.
So you can fit three lighting bulbs, either Edison Screw (E27) or Standard Bayonet Bulbs (B22)

It is supplied in a 2 part set comprising of one plain ring and one utility ring that will attach to the lamp holder.

What type of lamp holders will this frame fit?
The frame is manufactured to fit European lamp holders, and a Converter/Reducer Adaptor plug is supplied fitted to reduce the aperture
so it can fit UK lamp holders.

Lampholder Types
B22 Bayonet Cap  Lampholders (UK) -  Adaptor Fitted
E14 Edison Screw Lampholders  (EU)    Adaptor Fitted
E27 Edison Screw Lampholders  (EU)    Adaptor Removed
E26 Edison Screw Lampholders  (US)    Adaptor Removed

What's included?
1 x 100cm Diameter Lampshade Frame

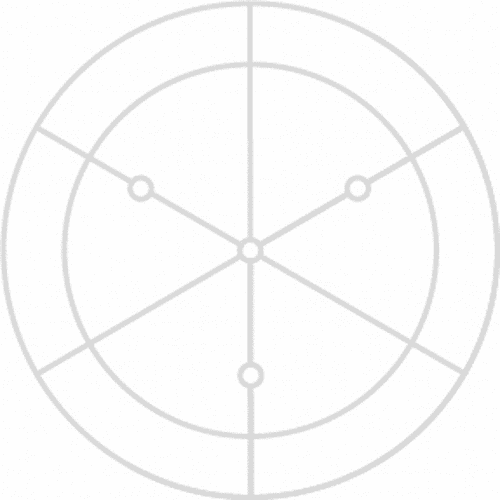

1 x 100cm Diameter Utility Frame with 3 Lampholder fitting points
1 x E27/E26 to B22/E14 Lampshade Reducer / Converter Adapter (fitted)

Advice for installation

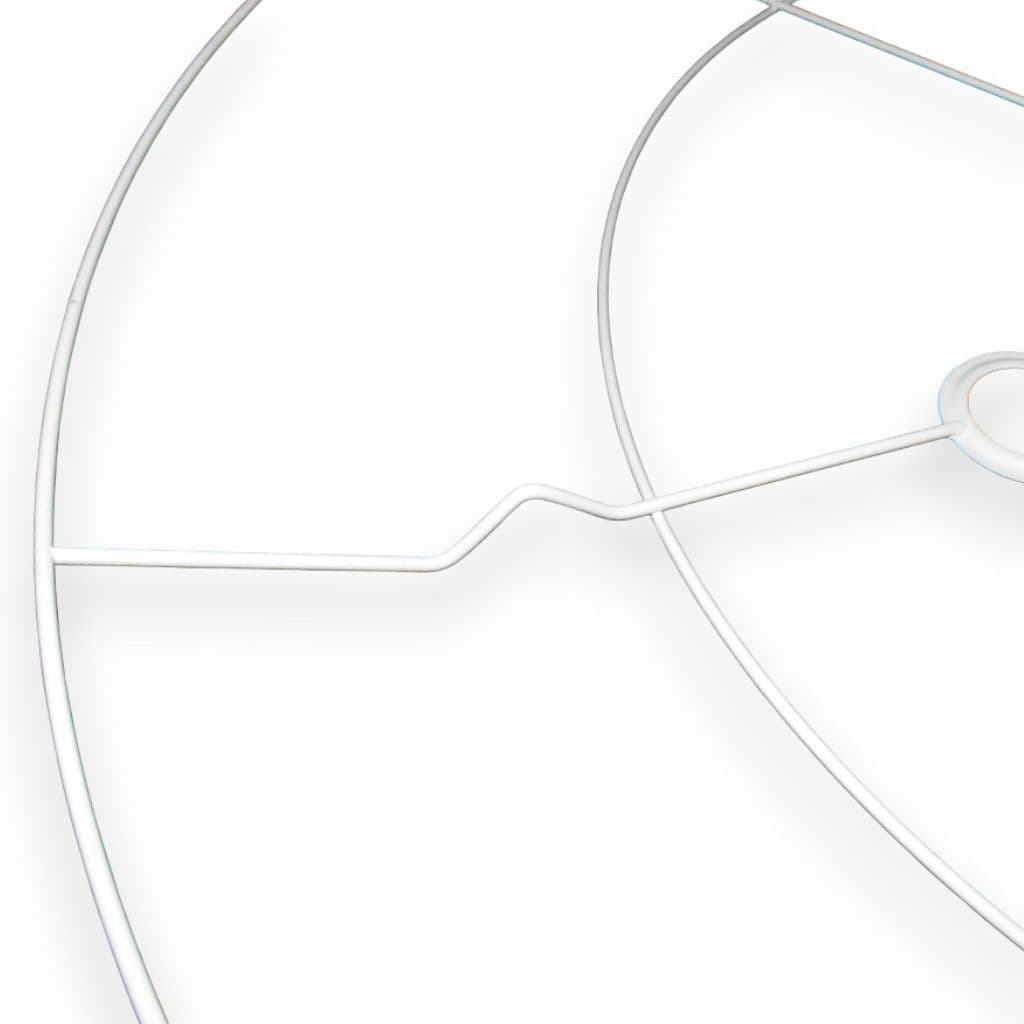

The fitting ring has three bends for attaching support wires. (see display images).

Use Galvanised Suspended Ceiling Wire 2mm with Hooks, Eyelets and a standard crimper toolset to install on ceilings.

Specifications
Frames manufactured from 4mm Heavy Gauge Mild Steel Wire
6 Way fitting for shade support.
Utility Frame has an aperture of 40mm
Epoxy coated / Painted White (prevents oxidising)


How much material do you need / panel size
The length of your panel needs to be 3162mm wide to go around the circumference of the frame, which includes (15mm) allowance for the overlap/seam.

                    3162mm  Wide

Watch a video
lampshade being made in real-time with one of these frames.

Options


Do you need a panel for your Frame?
Try our FREE Lampshade Designer Software to design a template for your frame.
Our software gives you an instant on-screen preview of your design, and you have options to save the pattern as a PDF for printing or cutting.  For more information, or to try now click here.

Lampshade Panels

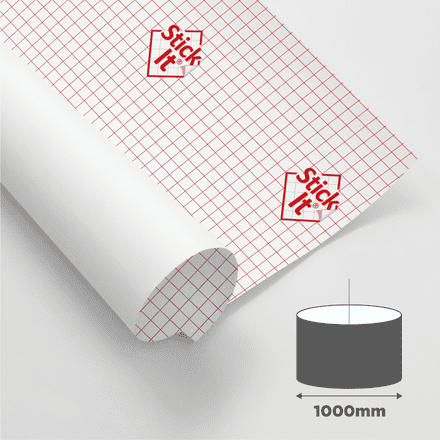

We can also supply Self Adhesive Lampshade panels to go with the ring; we offer four heights for this frame, 150mm, 200mm, 250mm and 300mm.
To order, see related items below.


Diffuser

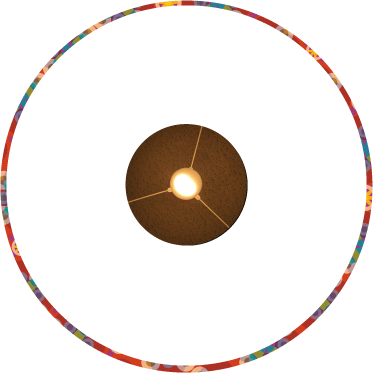

Why not add a diffuser to your frame. Very stylish, the diffuser sits underneath the shade when it is used as a pendant, covering the bulb and diffusing the light. Easy to install sits on the ledge of the bottom ring. We have two different styles available White Foamex with die-cut and Translucent Polypropylene.
To order, see related items below.


Harp & Finial Fitting - Converting Washers
If you wanted to use the frame with a Harp & Finial fittings, used mainly in the USA, then you can use converting washers with our adapter.
To order, see related items below.
