100cm Extra Large Circular Lampshade Ring Set

Professional Lampshade Ring Set 100cm – ShadeCore™

ShadeCore™ premium metal ring sets are designed for manufacturing oversized lampshades used in industrial, commercial, hospitality, exhibition, retail, and specialized residential lighting projects.

ShadeCore™ frames provide lampshade makers with a reliable, high-quality foundation for their projects and product lines.

The frame is at the heart of every lampshade design. It defines the shape and supports the structure.
You can rely on ShadeCore™ frames for strength, accuracy, and professional results every time.

About ShadeCore™

It is our brand of lampshade ring sets and frames, made for makers who demand quality, consistent sizing, and professional performance.
Trusted by manufacturers and makers worldwide, our frames serve as the foundation for products in quality retailers, interior design, and commercial lighting projects. ShadeCore™ delivers dependable performance every time.

What type of lampshade can you make with this ring set?

This ring set is designed for creating drum or cylindrical lampshades with straight sides, where both the top and bottom rings have the same diameter.
You can use it with table lamps, floor lamps, pendant lights, and other types of interior lighting.

What’s Included

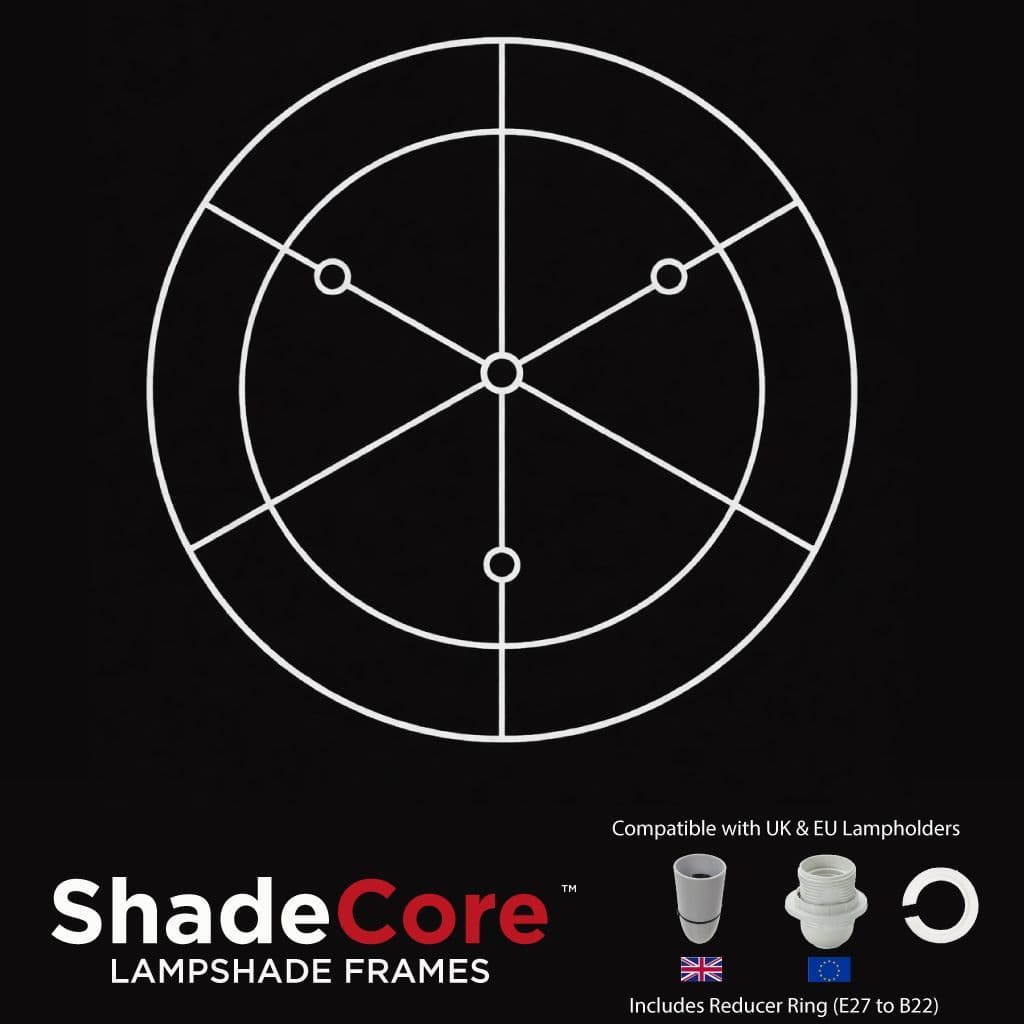

• 1 x 100cm Diameter Lampshade Ring
• 1 x 100cm Diameter Utility Ring
• 1 x E27/E26 to B22/E14 Reducer / Converter Adapter (fitted)

Panel Size Guide

If you need to cut a lampshade panel to fit this frame, we provide a helpful size guide below.



To cover this frame, your panel should measure approximately 3142mm wide, plus an allowance for the seam overlap.
A standard overlap allowance of 20mm is suitable for most lampshade constructions.
However, if you plan to create a fabric-covered seam, additional material should be added to the panel to accommodate the extra overlap required.
The panel height is determined by your chosen shade height

Lampshade Panel
We supply a 3172mm wide panel in four different heights specifically for use with this frame. Please see the related items below.

Alternatively, you can use our free online Lampshade Template Creator to design a perfectly sized panel for this frame.
Simply generate your template, print it out, and use it as an accurate cutting pattern.

You’ll find the link to the Lampshade Template Creator at the bottom of this page.

Lampholder Compatibility

The frame fits 3 x  European lamp holders and includes a fitted reducer/converter adapter for UK lamp holders.
This allows the frame to work with multiple common fitting types used in lampshade making.

• B22 Bayonet Cap (UK) – adaptor fitted
• E14 Edison Screw (EU) – adaptor fitted
• E27 Edison Screw (EU) – adaptor removed
• E26 Edison Screw (US) – adaptor removed

Advice for installation

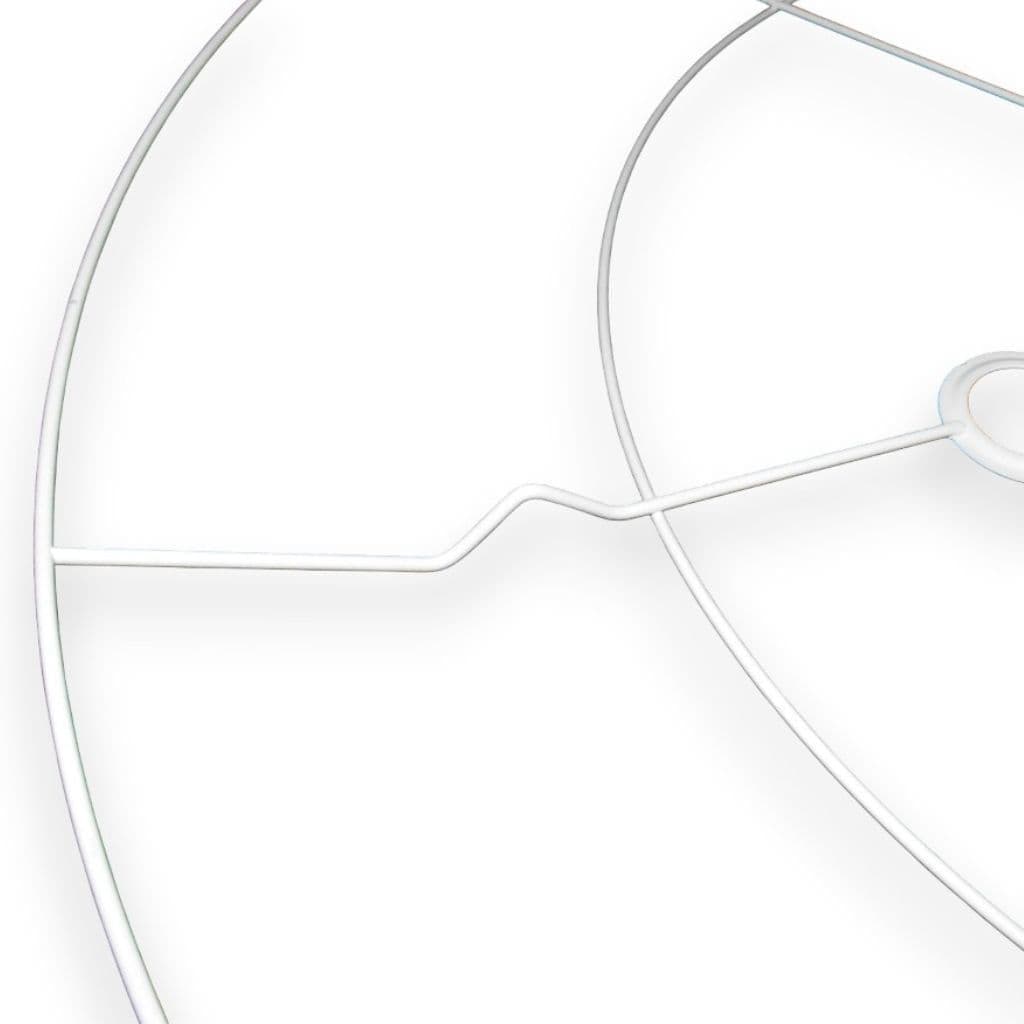

The fitting ring has three bends to attach support wires. See display images.
Use Galvanised Suspended Ceiling Wire 2mm with Hooks, Eyelets and a standard crimper toolset to install on ceilings.

Typical Applications

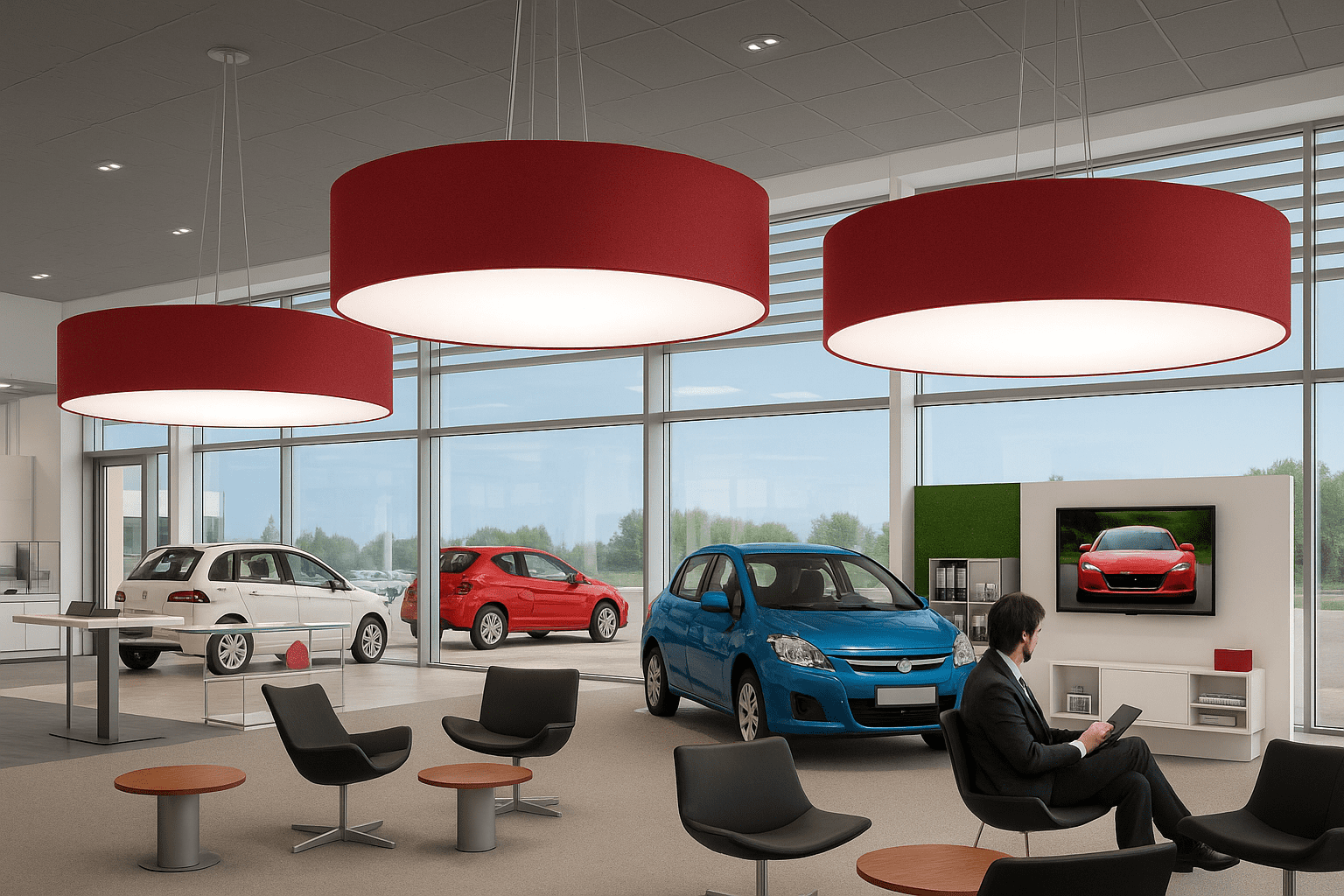

• Interior design projects
• Commercial lighting applications
• Bespoke and made-to-order lampshades

Key Features and Benefits

• Precision-made frame for professional commercial lampshade
• Strong 6mm heavy duty steel wire for stability and shape retention
• White epoxy-coated finish helps prevent oxidising
• Compatible with UK, European fittings
• Supplied with reducer / converter adaptor fitted

Watch a Video

Watch this youtube video to see how they are made.

Specifications

Important Notes

Rings may have a small uncoated spot from the finishing process where the frame was held during spraying.
This is normal and not a defect.

Do you need other materials to make your lampshade?

Below our some quick links for you

Lampshade Materials
Double-Sided
Self-Adhesive Tapes
Tools
Lampholders
Diffusers

Do you need to draw a pattern for the panel for your frame?

We offer a free online Lampshade Designer and Pattern Creator to support makers at every stage.
Design, customise, and download accurate patterns to create your lampshade with confidence.
Whether you are new to making lampshades or producing professionally, this tool helps you work with accuracy and consistency.

Start Designing for Free
